Thermos Replacement Parts & Pieces List

If you have an old Thermos with either a missing or broken piece that you are looking to replace then hopefully this page can help. It can be difficult at times to know the correct piece you need to get your favorite Thermos back together again. Below we are compiling a list of Thermos items as well as the parts that go with them. We also have dimensions of different parts because many pieces are cross compatible. This page is a work in progress, if you need any additional help feel free to use our Contact Us page.

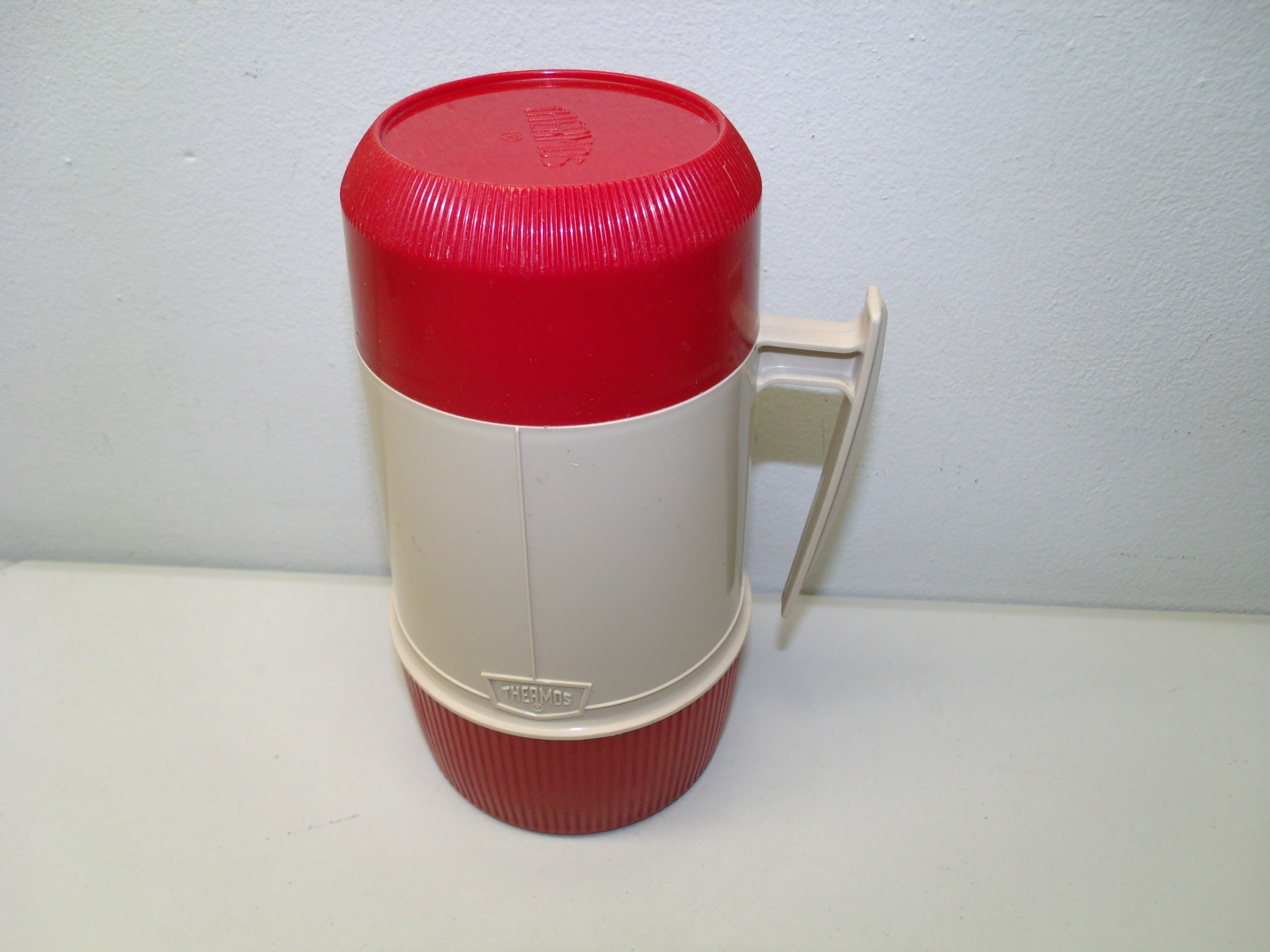

Complete Thermoses

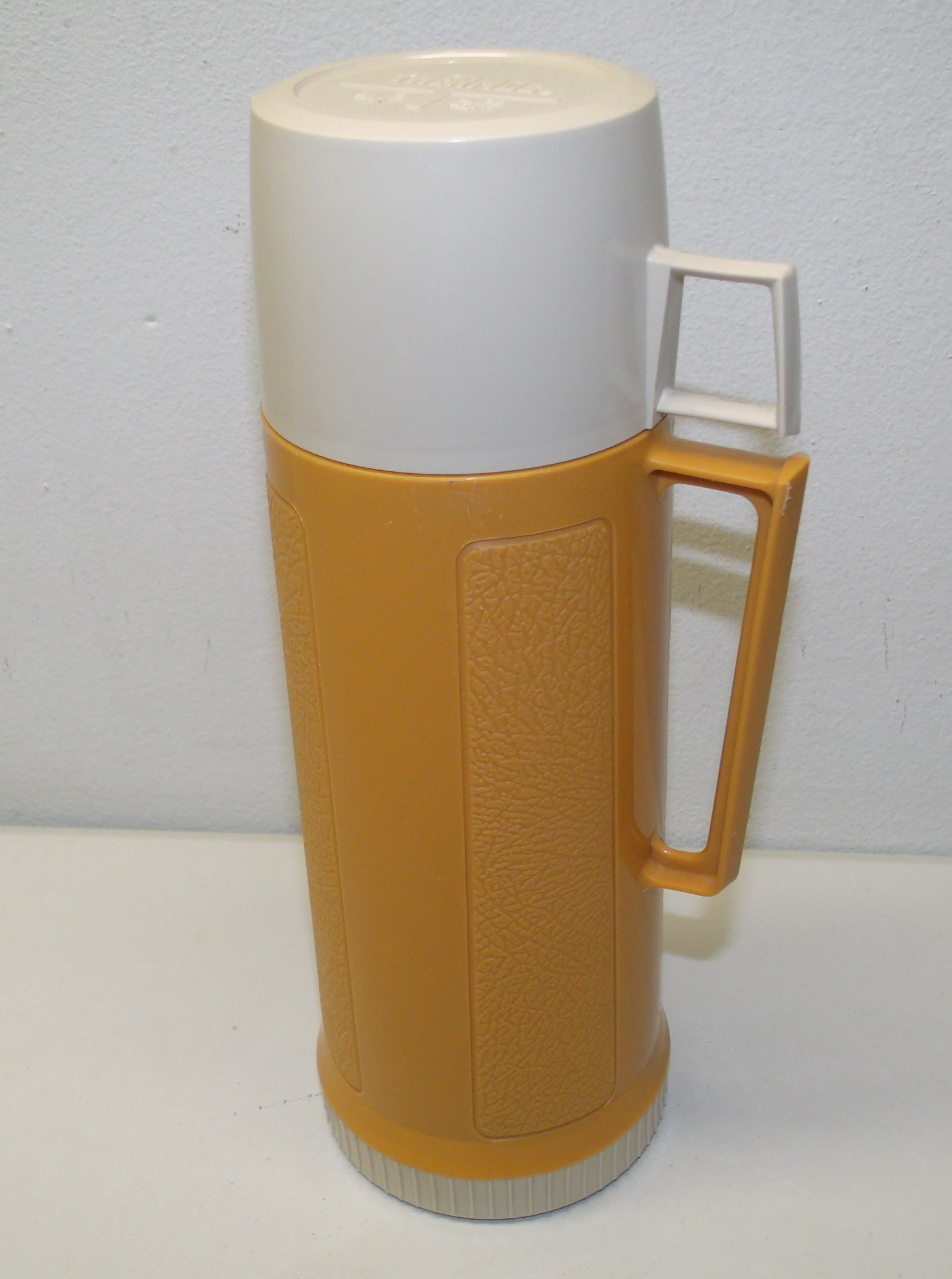

Capacity: 1 pint (16 ounces)

Height: 10 inches

Diameter (at base): 3-1/2 inches

Standard mouth opening

Filler / Liner: #22F

Stopper: #722

Cup: #22A63

Find it on eBay

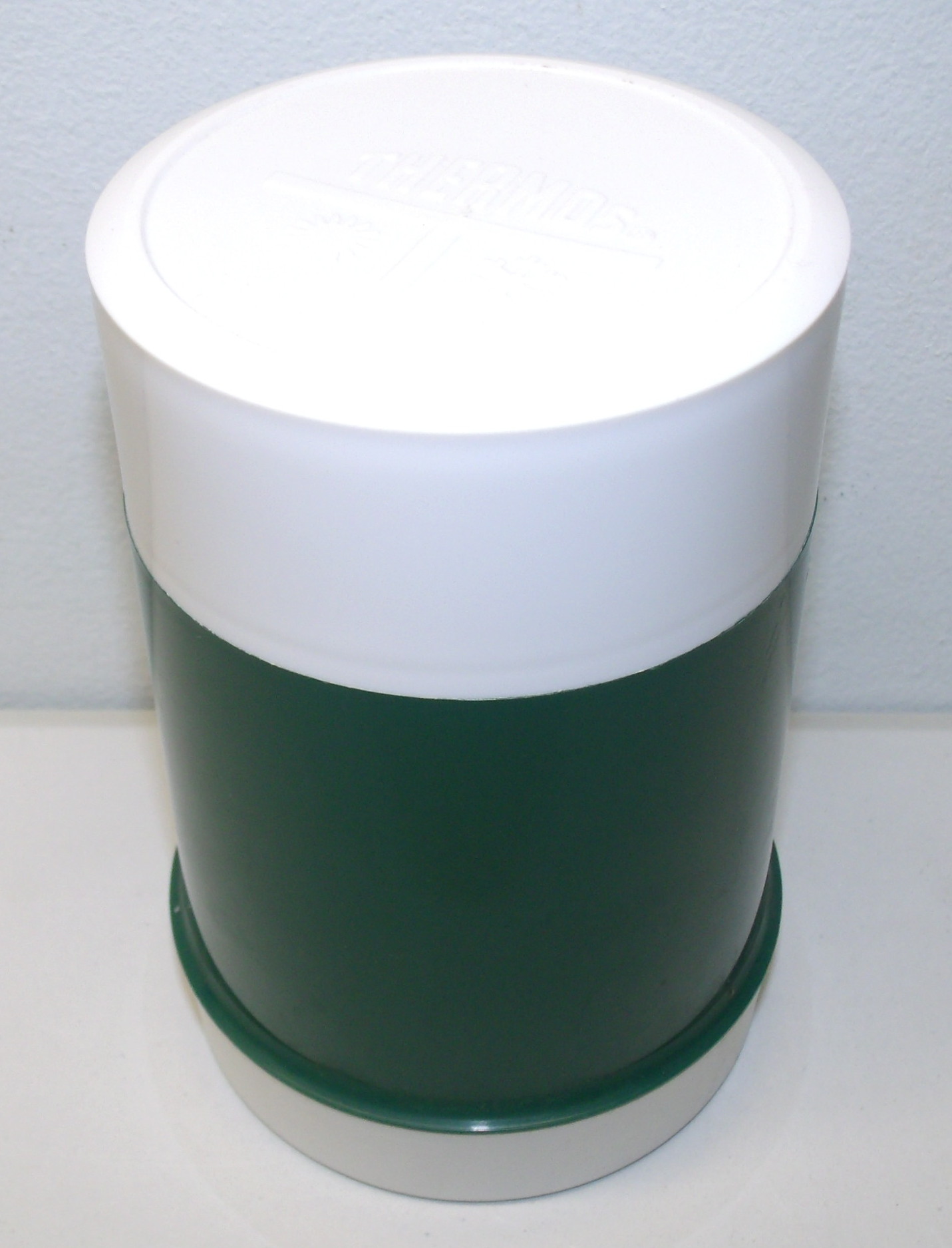

Food Jar

Capacity: 10 ounces

Height: 6-1/4 inches

Diameter (at base): 4-1/4 inches

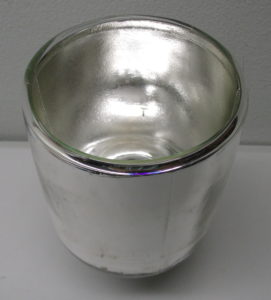

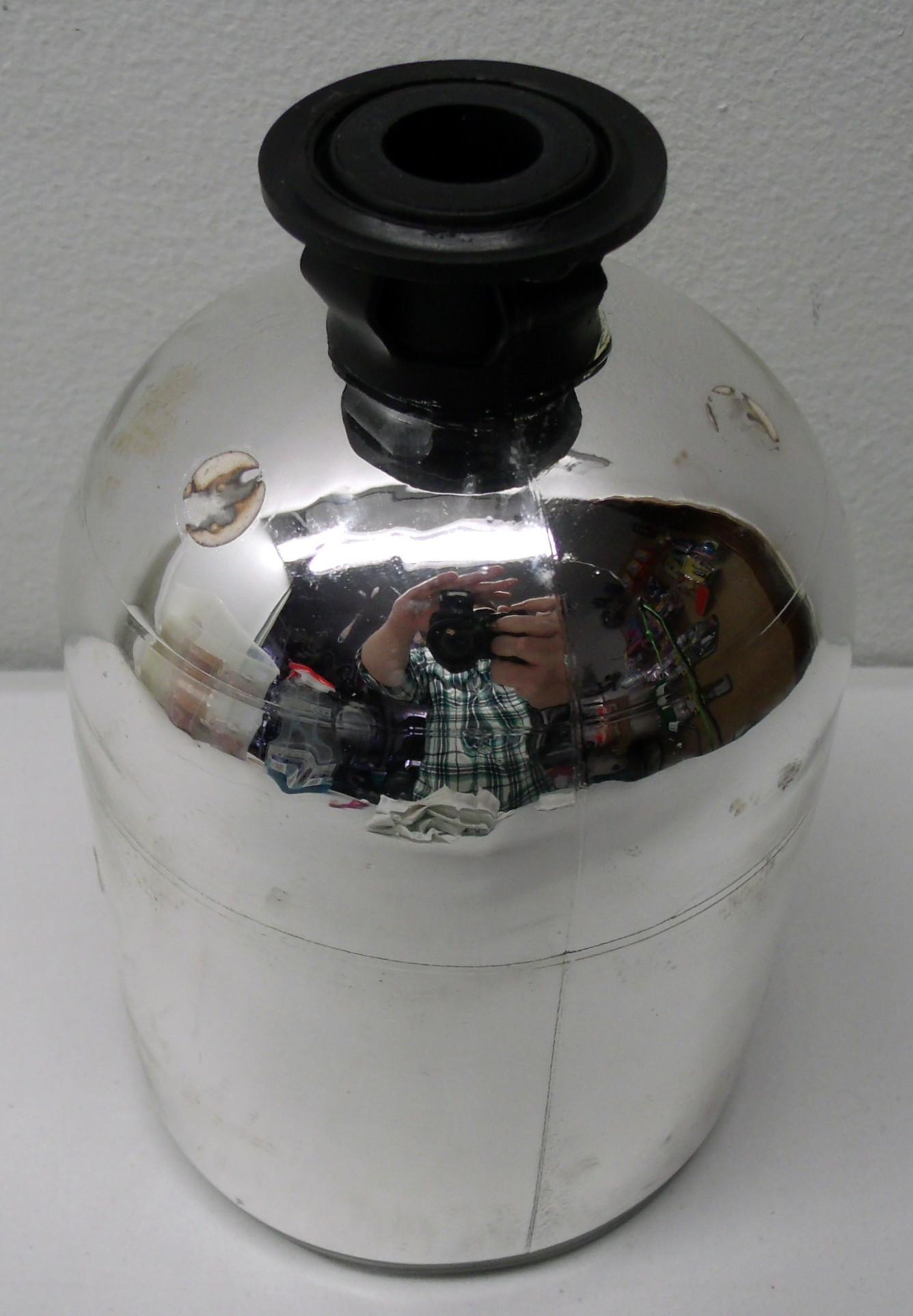

Filler / Liner: #70F

Stopper: No model number given. Proper stopper will have a diameter of 2-5/8 inches on the bottom.

Cup/Top: No model number given. Proper cup/top will have a diameter of 4 inches on the bottom.

Find it on eBay

Model: 6202 (widemouth)

Capacity: Pint (16 ounces)

Height: 8 inches

Diameter (at base): 4 inches

Filler / Liner: #62F

Stopper: No model number given. Proper stopper will have a diameter of 2 inches on the bottom.

Cup/Top: No model number given. Proper cup/top will have a diameter of 4 inches on the bottom.

Find it on eBay

Thermos Cups

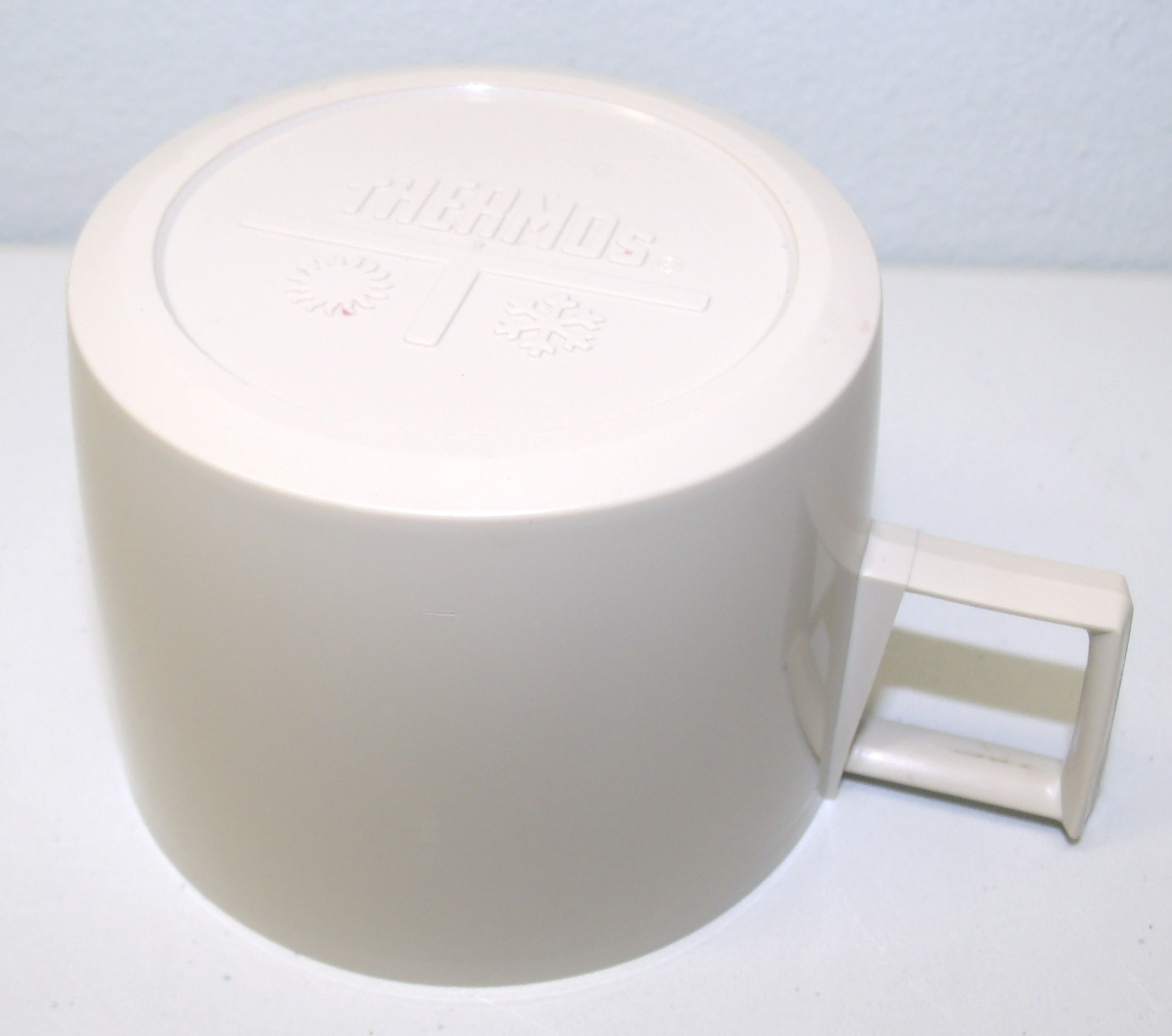

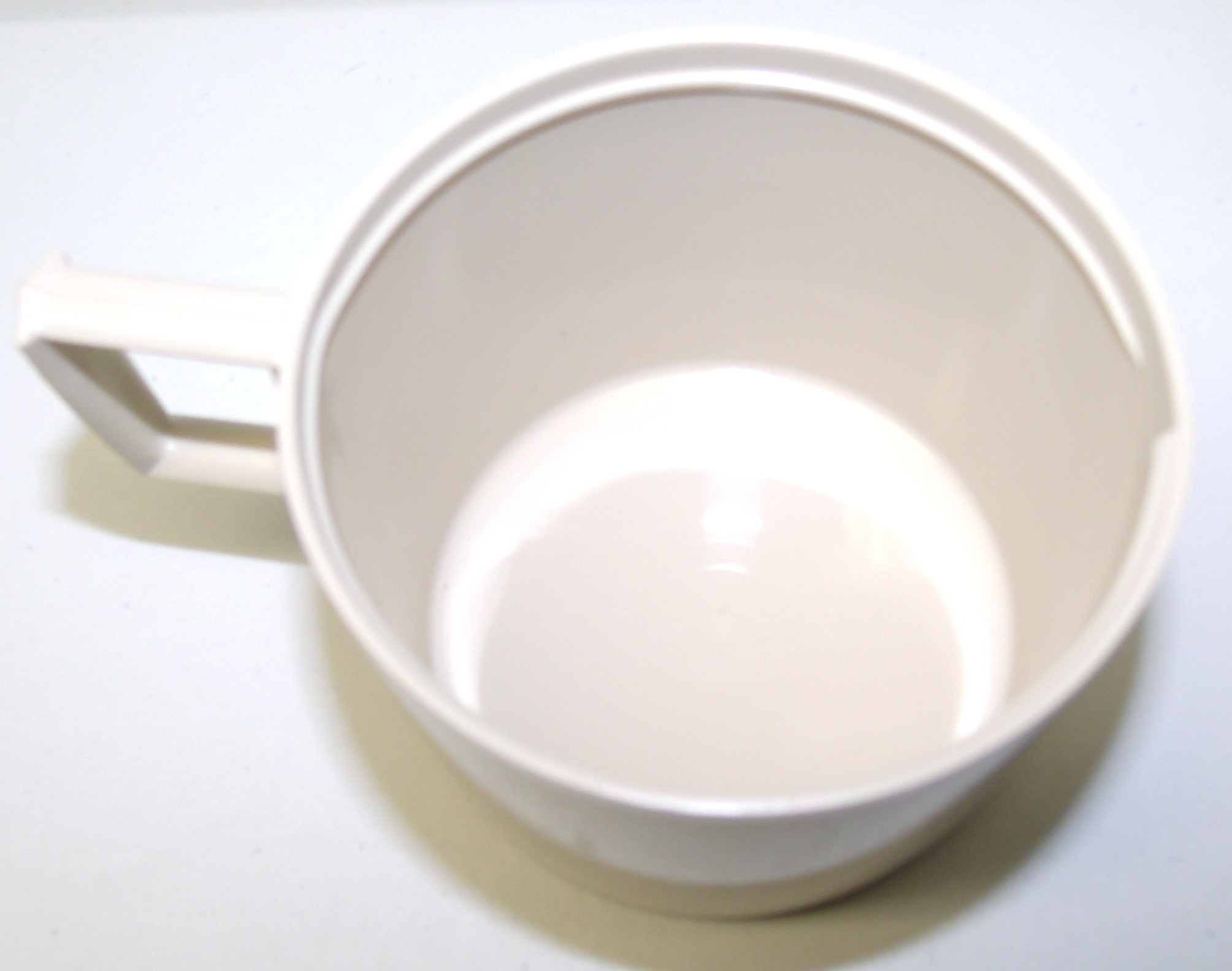

Model: 22A63

Height: 2-1/4 inches

Diameter at opening: 3 inches

Threads on

Standard mouth opening

Find it on eBay

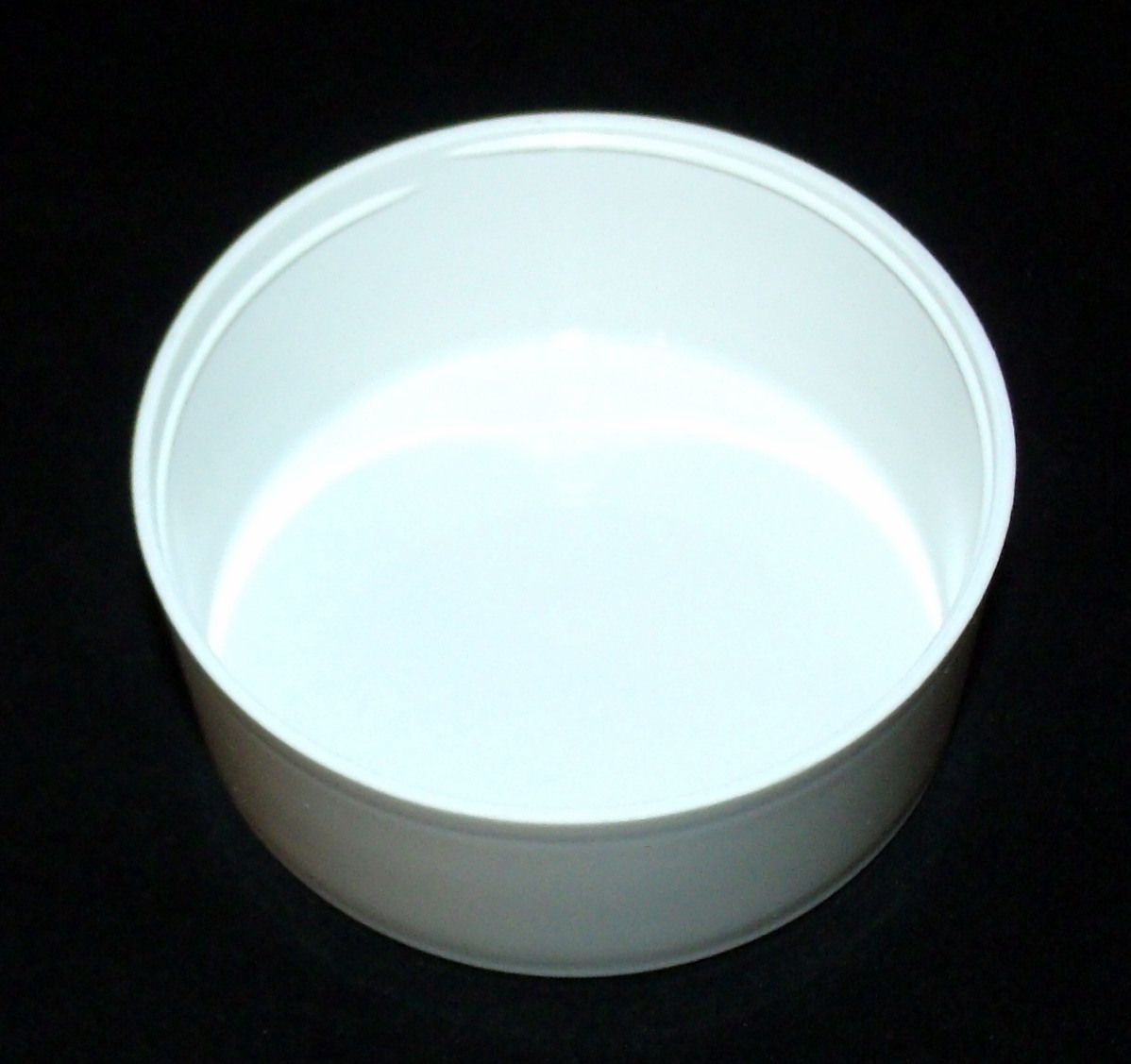

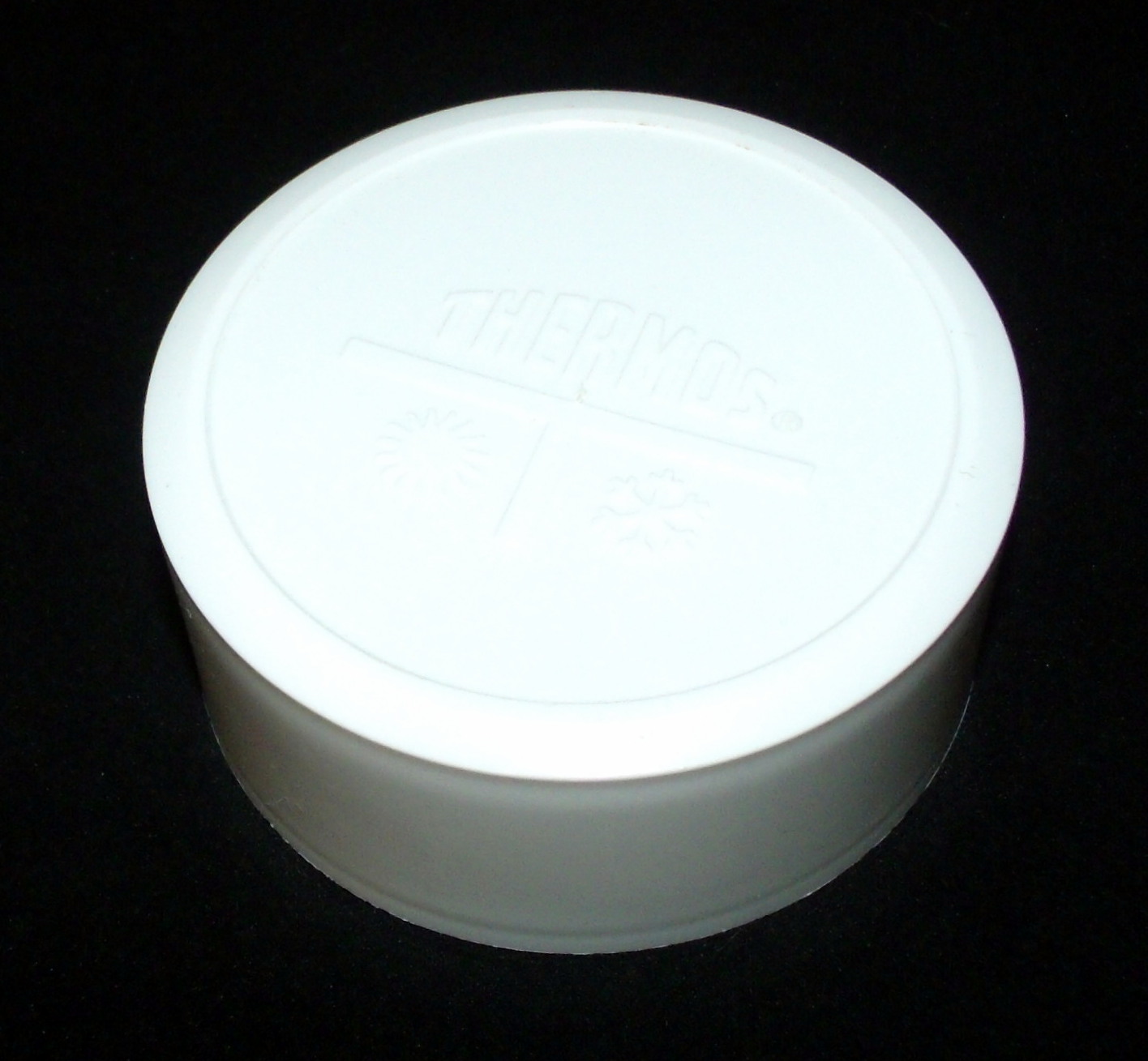

Model: This item is not marked

Height: 1-3/4 inches

Diameter at opening: 4 inches

Threads on

Standard mouth opening (Keep in mind this is for a food jar and not a traditional Thermos)

Find it on eBay

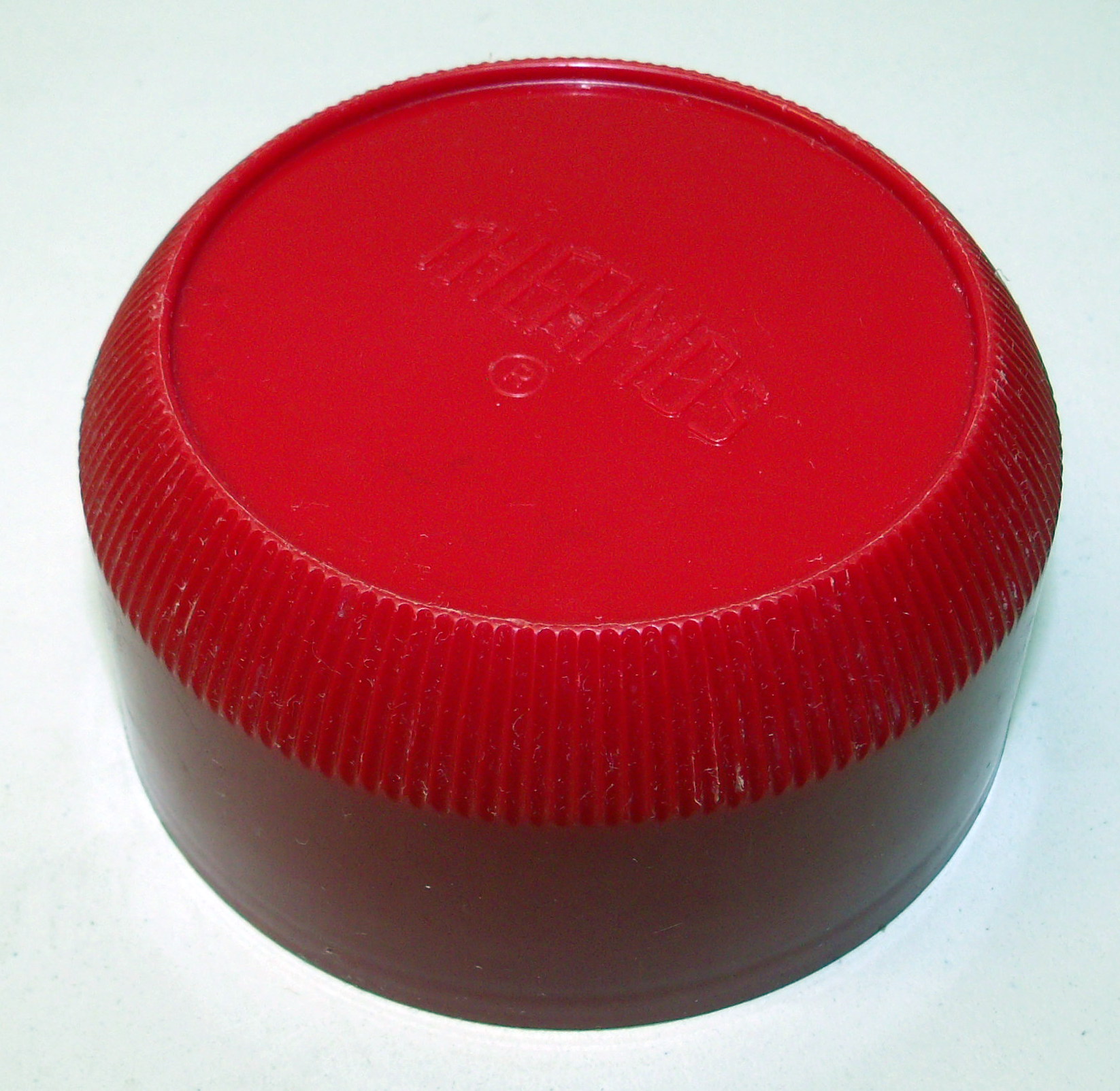

Model: This item is not marked however it was pulled from a Thermos model 6202

Height: 2 inches

Diameter at opening: 4 inches

Threads on

Removed from wide-mouth 6202 Thermos

Find it on eBay

Thermos Stoppers

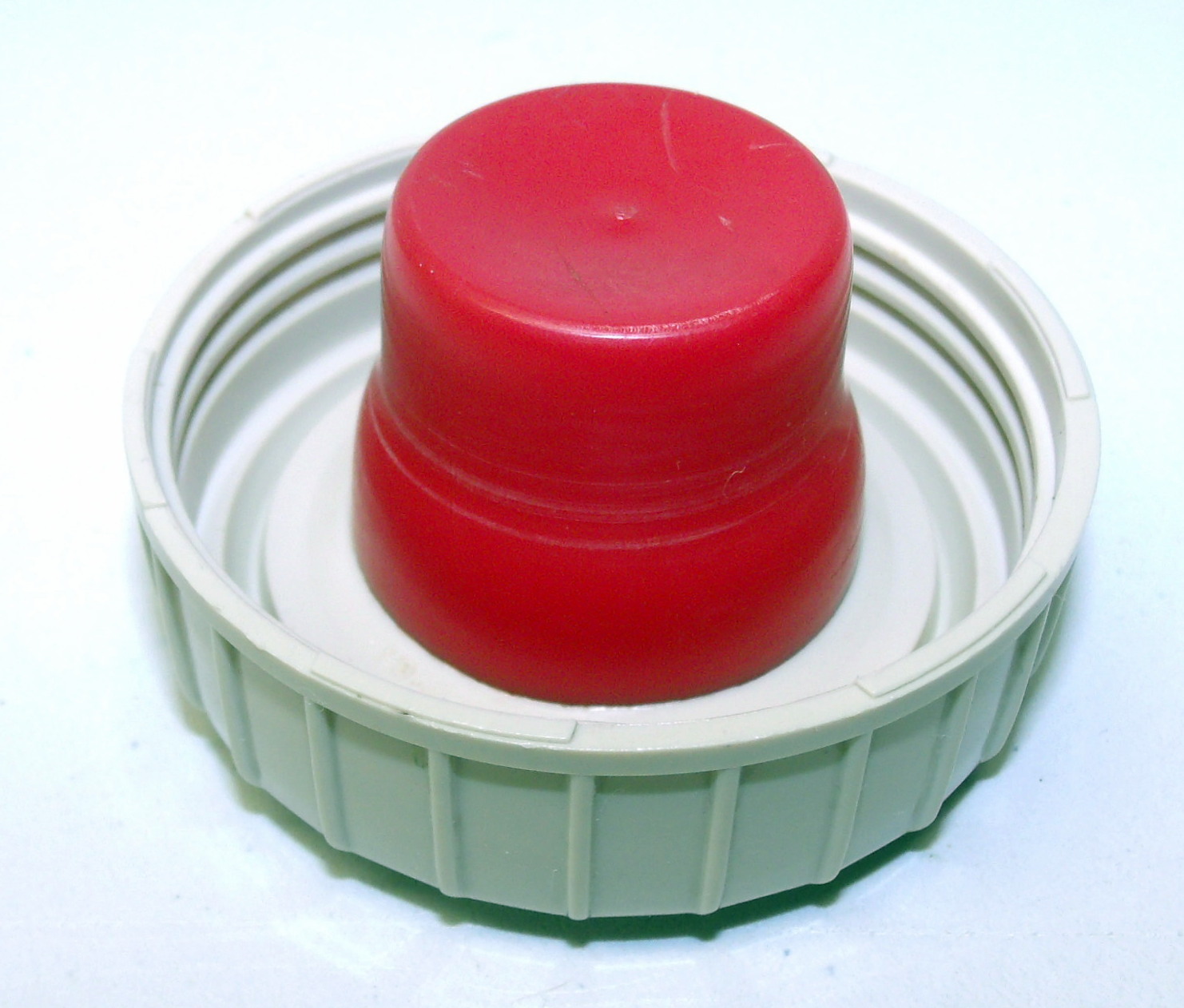

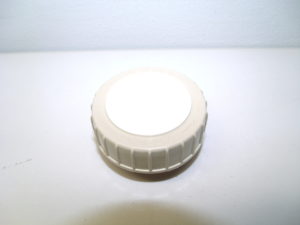

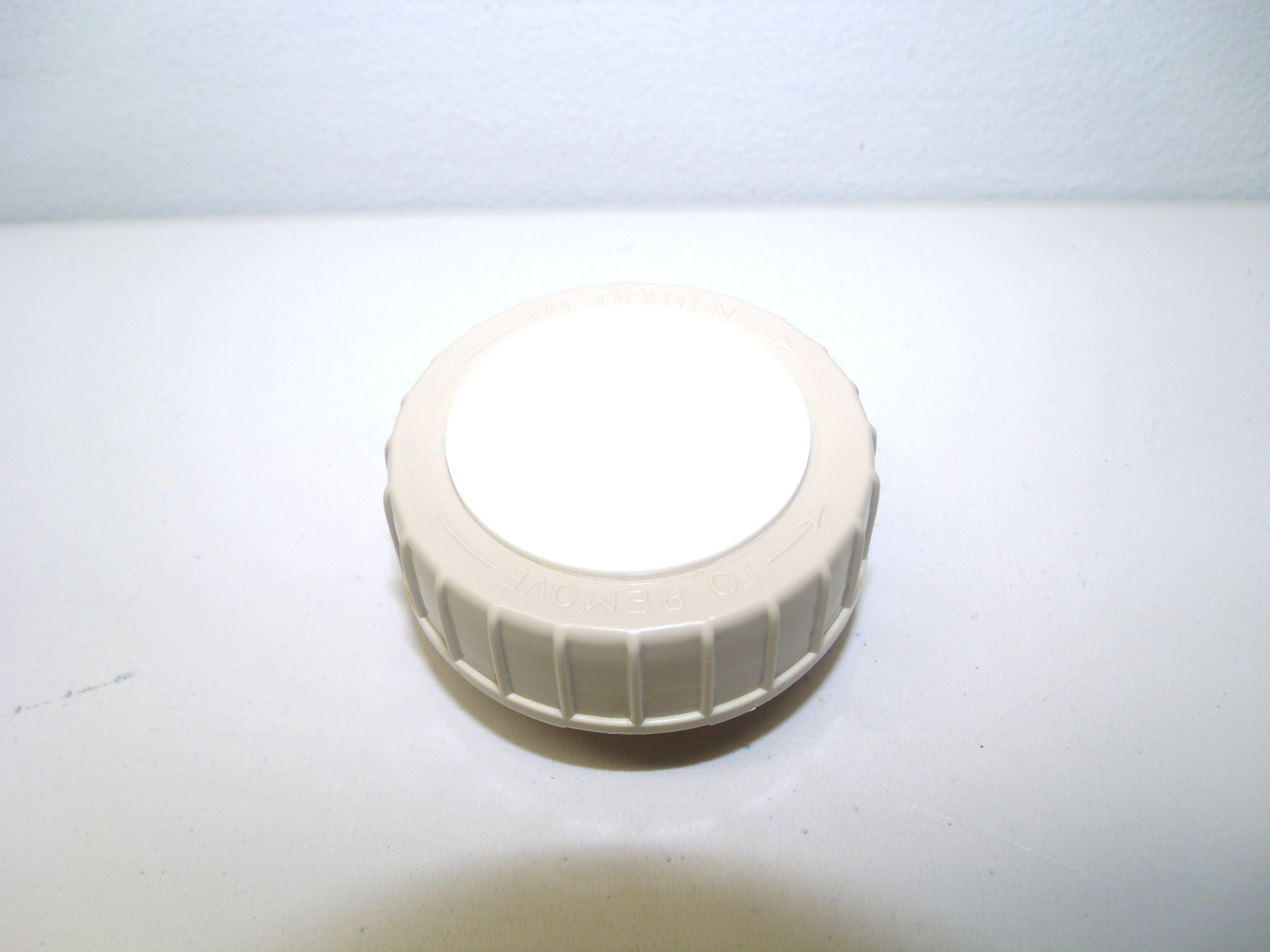

Model: 722

Height: 1-1/4 inches

Diameter: 2-1/4 inches

Threads on

Standard mouth opening

Find it on eBay

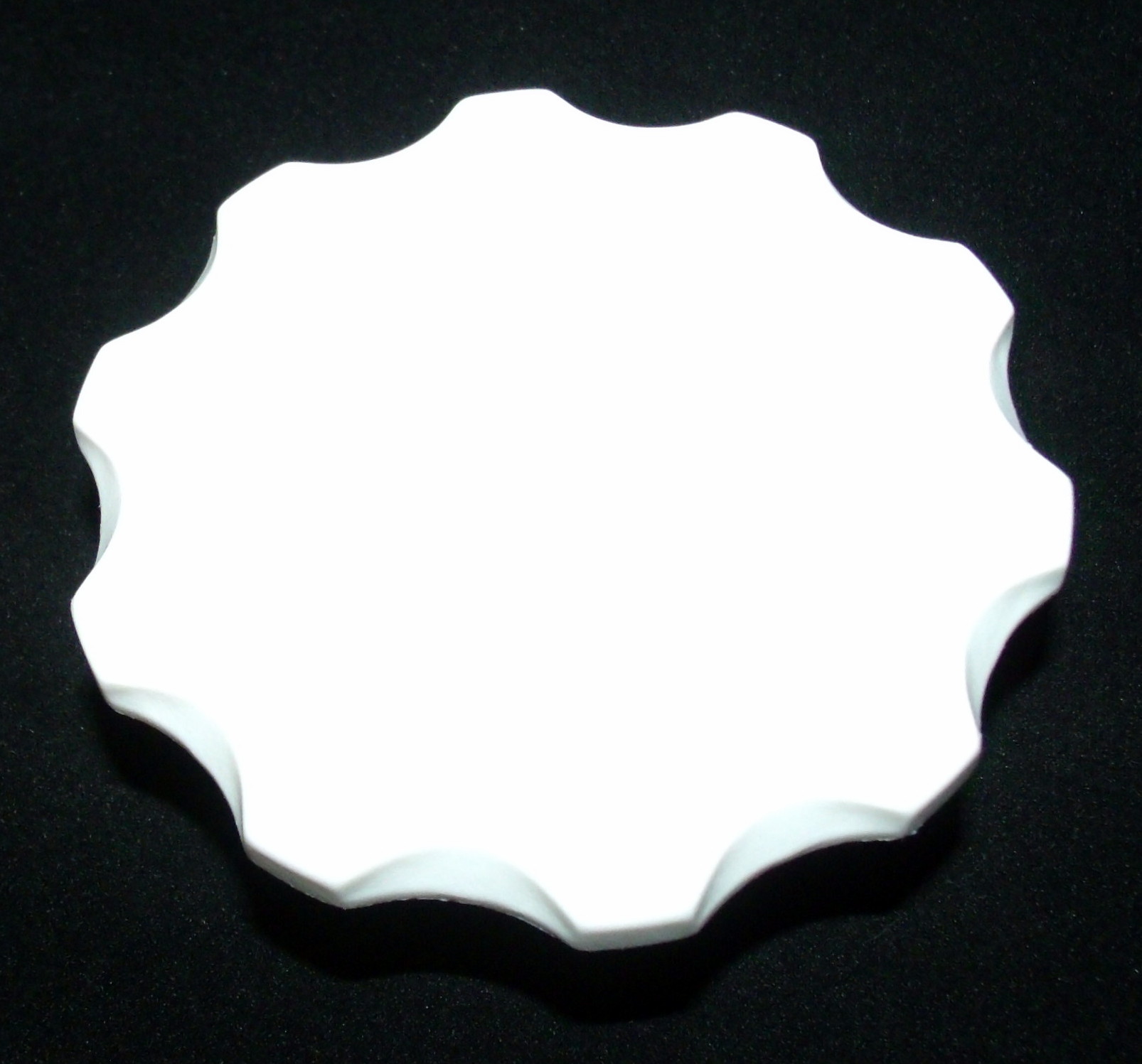

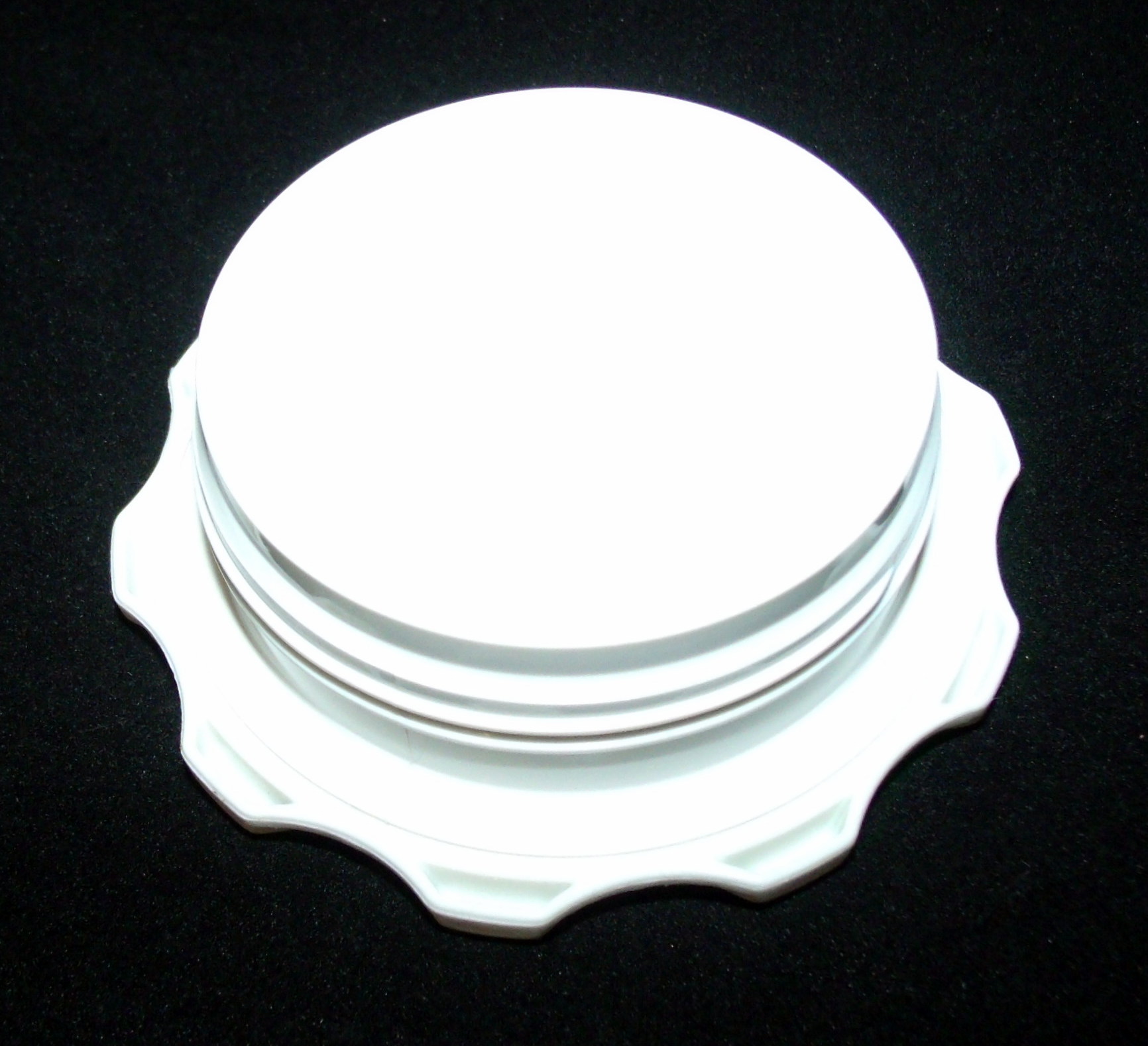

Model: This item is not marked

Height: 1-1/8 inches

Diameter at bottom: 2-5/8 inches

Threads on

Standard mouth opening (Keep in mind this is for a food jar and not a traditional Thermos)

Find it on eBay

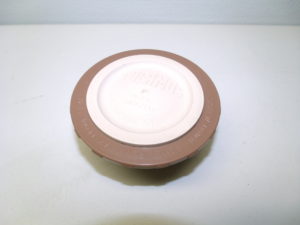

Model: This item is not marked however it was removed from a Thermos model 6202

Height: 1-1/2 inches

Diameter at bottom: 2 inches

Threads on

Wide-mouth opening

Find it on eBay

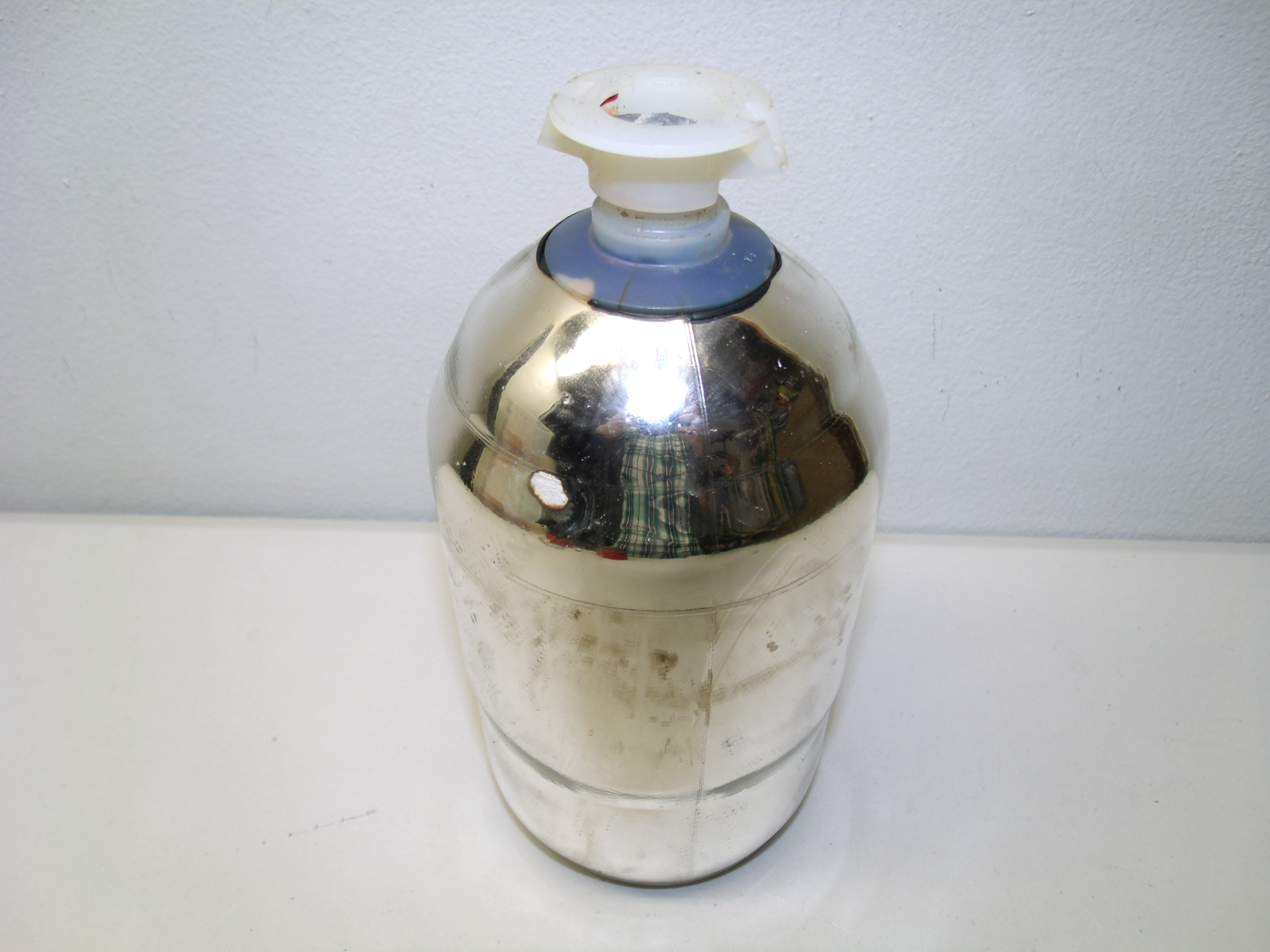

Thermos Filler / Liner

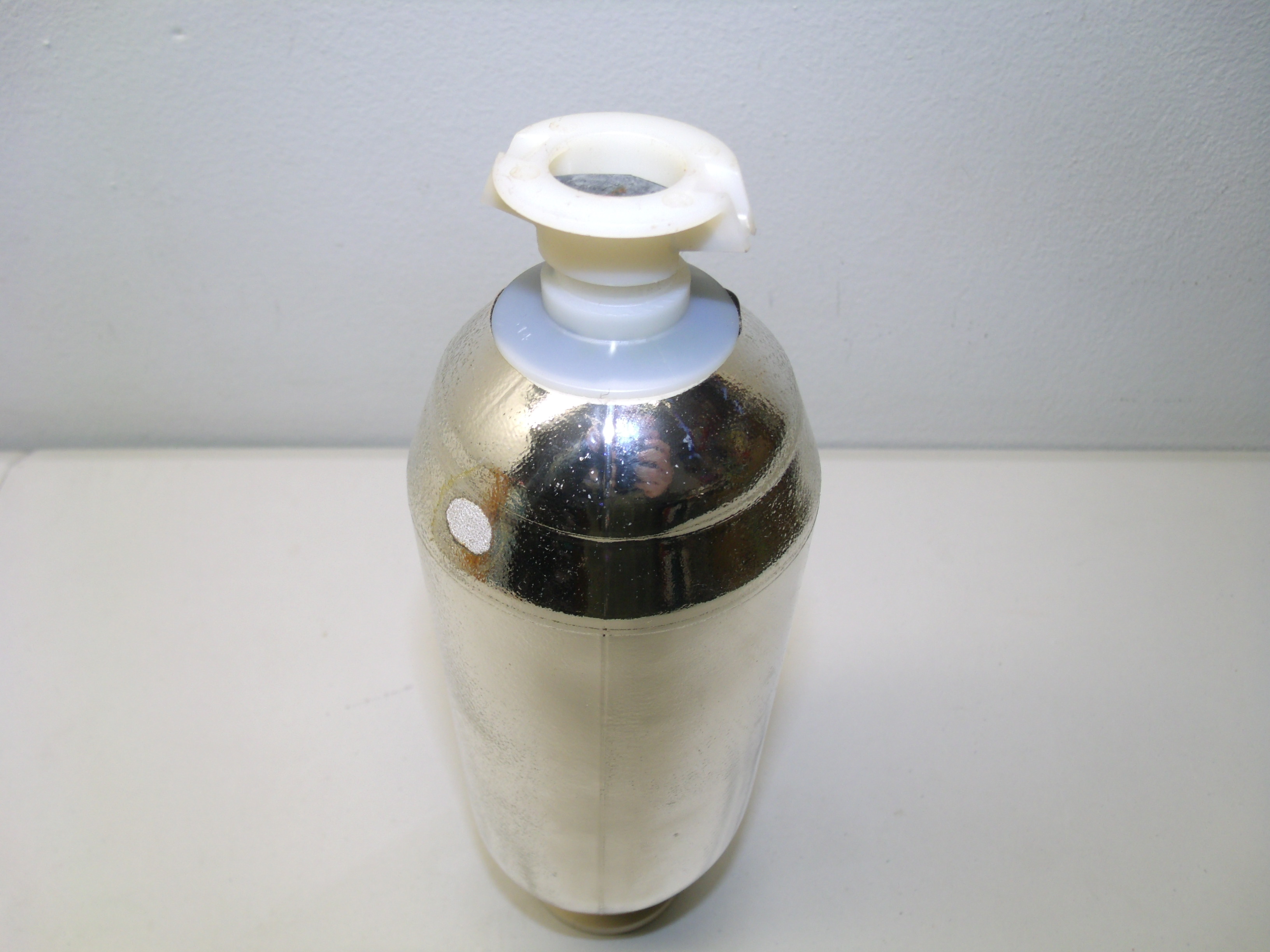

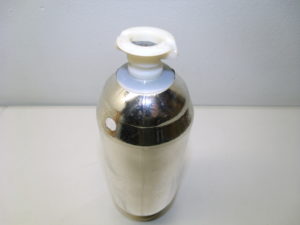

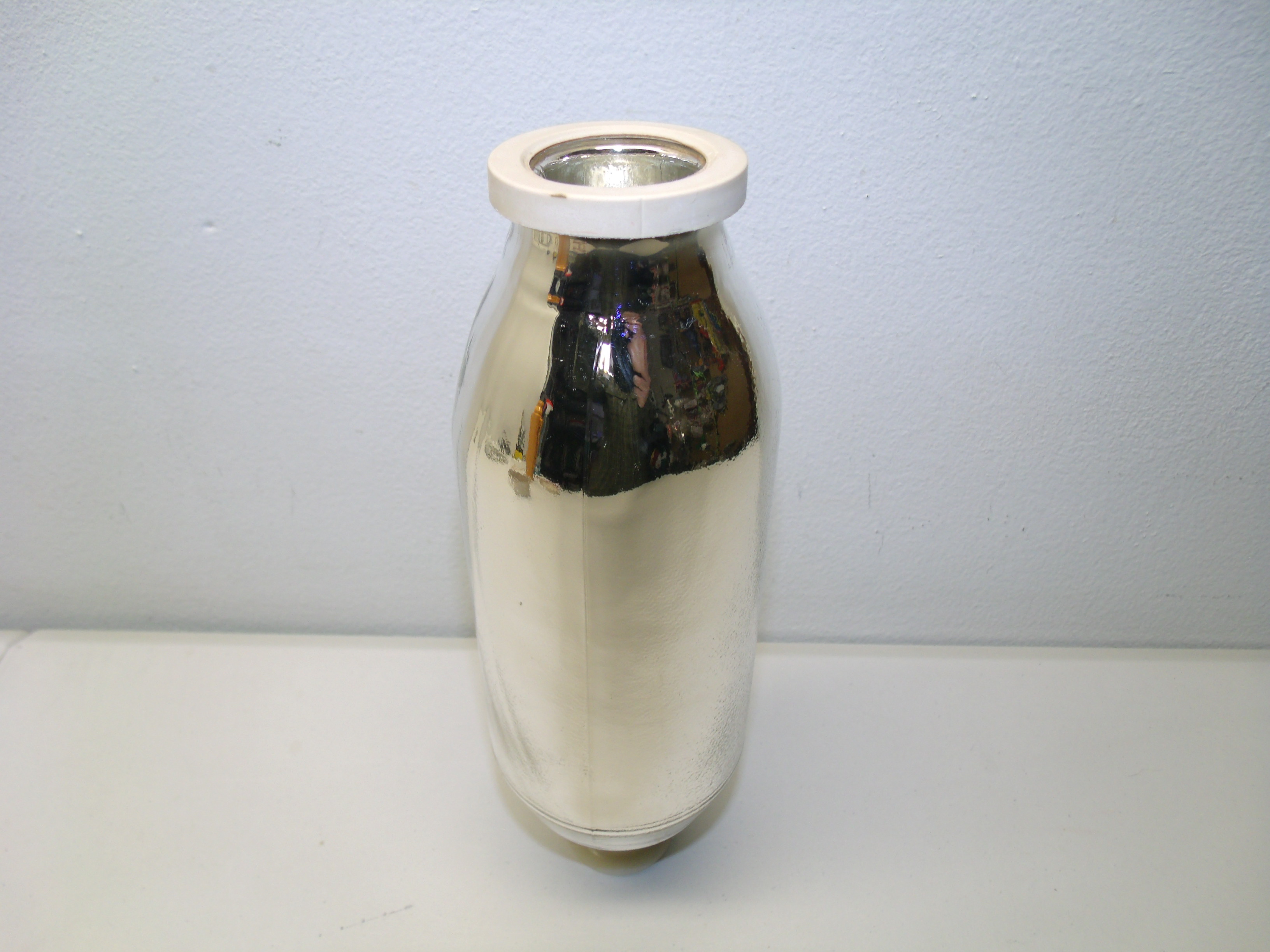

Model: 22F

Capacity: 1 pint (16 ounces)

Height: 8-1/2 inches

Outer diameter at opening: 1-3/4 inches

Overall diameter: 2-3/4 inches

Standard mouth opening

This piece does require a rubber seal that sits on the outside of the mouth opening. If buying a replacement be sure to either save your old one or that the new item includes the seal.

Find it on eBay
