Tool News: Say Goodbye to Dust with DeWALT’s DWXAF101 Air Filtration System

DeWALT air filtration system


DeWALT recently launched an air filtration system for woodworking environments – the DWXAF101. The new product is designed to offer a comprehensive solution for air filtration in woodshops and garages, with the ability to remove even the smallest particles from the air.

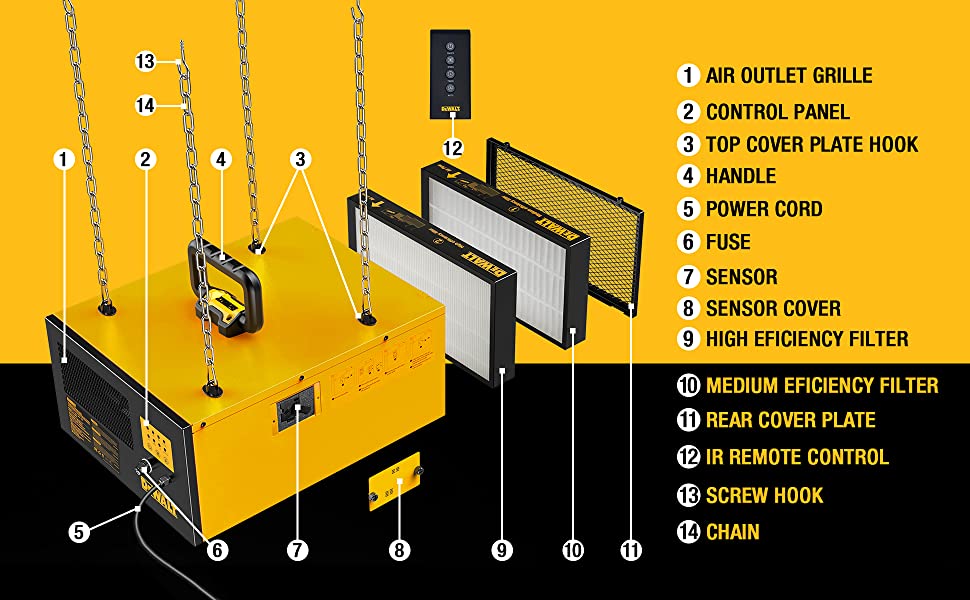

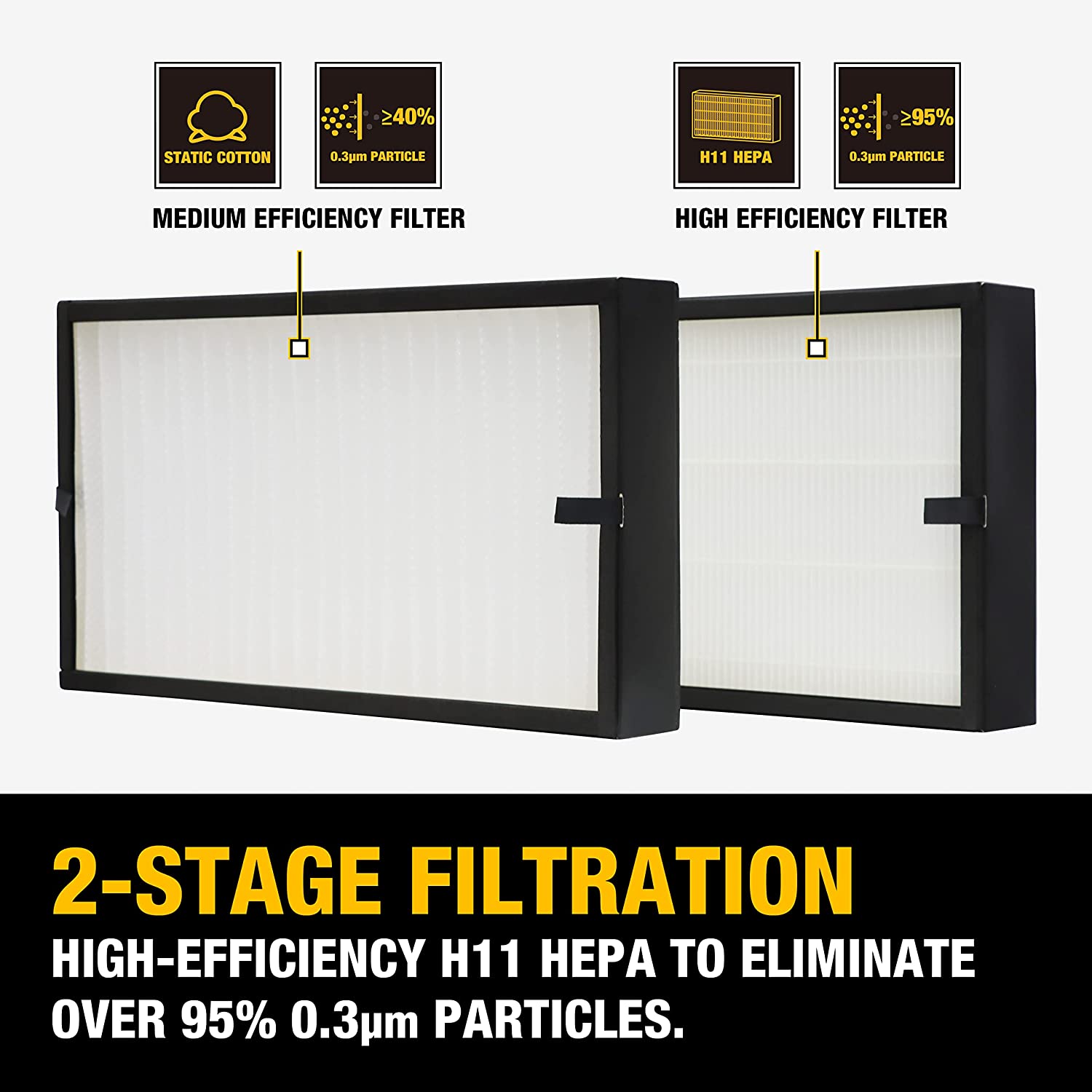

One of the standout features of the DeWALT DWXAF101 is its 2-stage filtration system, consisting of a cleanable static cotton medium efficiency filter and an H11 HEPA high-efficiency filter. This two-stage filtration process ensures that the air is thoroughly cleaned, removing more than 95% of 0.3μm particles.

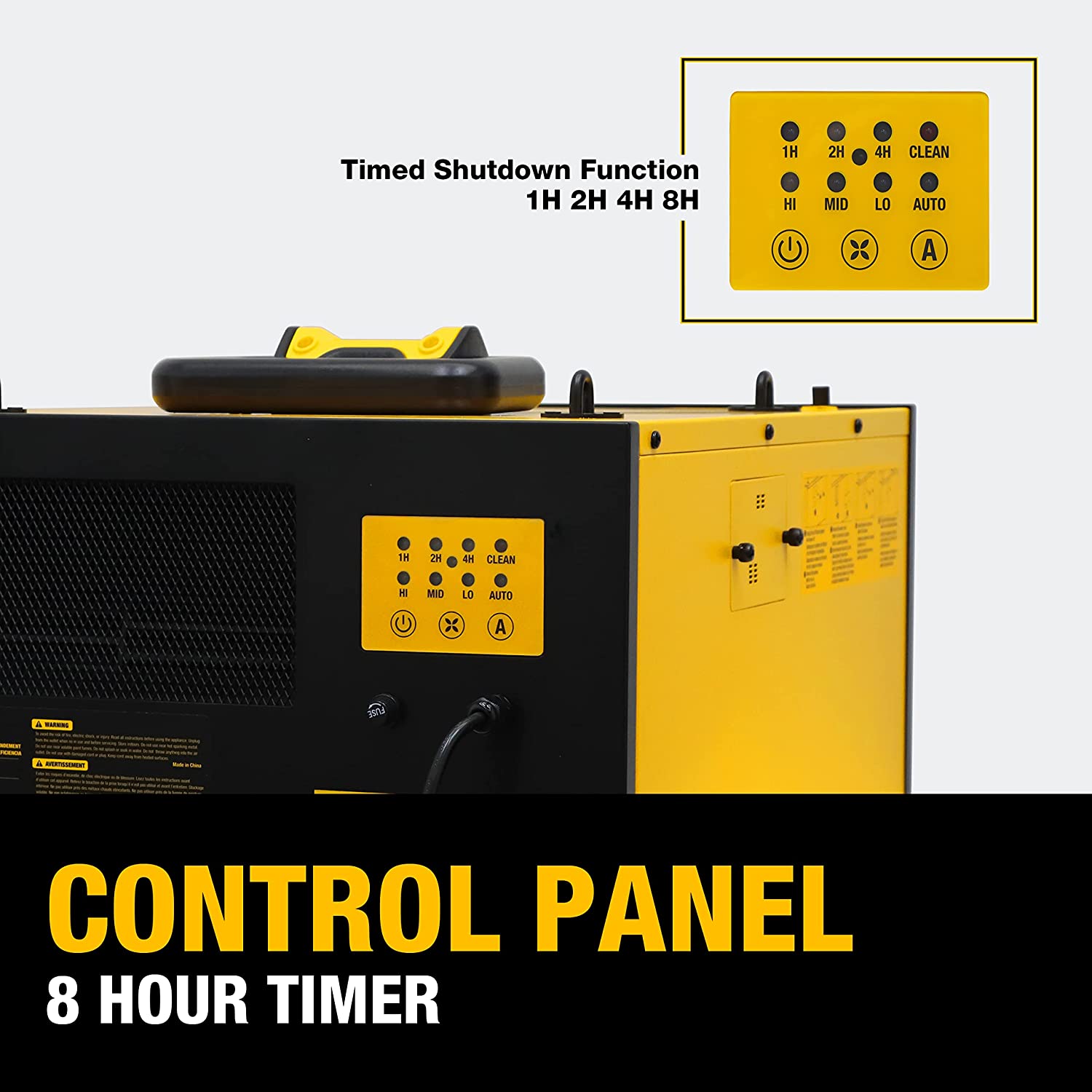

The air filtration system also comes equipped with a built-in timer that allows users to schedule the system to run for specific periods of time, with settings for 1, 2, 4, and 8 hours. After the designated time has elapsed, the system will automatically shut off, providing a hassle-free and efficient cleaning experience.

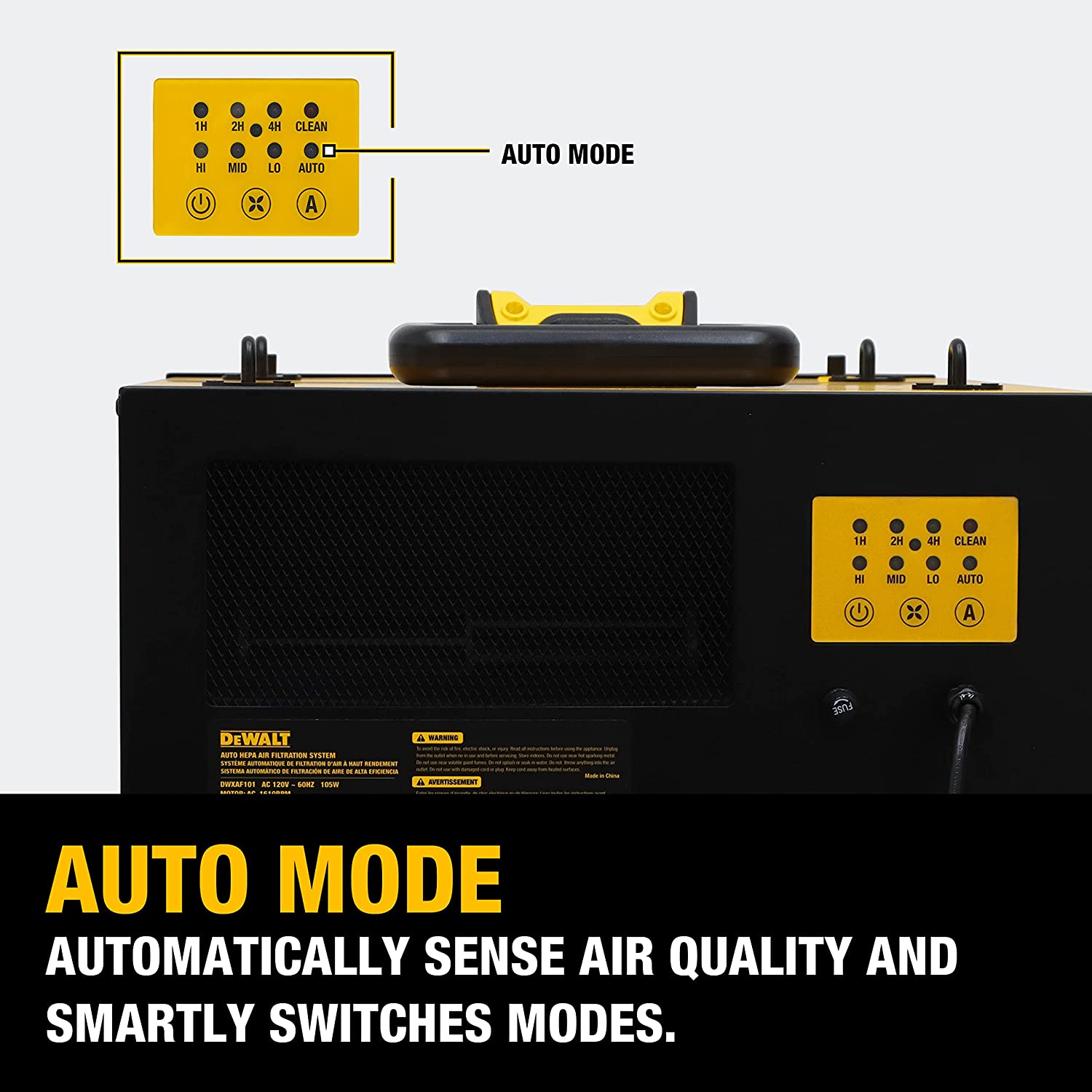

Additionally, the DeWALT DWXAF101 offers four working modes, including HI mode, MID mode, LO mode, and AUTO mode. The AUTO mode is equipped with an automatic sensor that senses air quality and automatically adjusts the filtration system’s speed accordingly, making it an efficient solution for workshops of varying sizes and dust levels.


Dewalt air filtration system

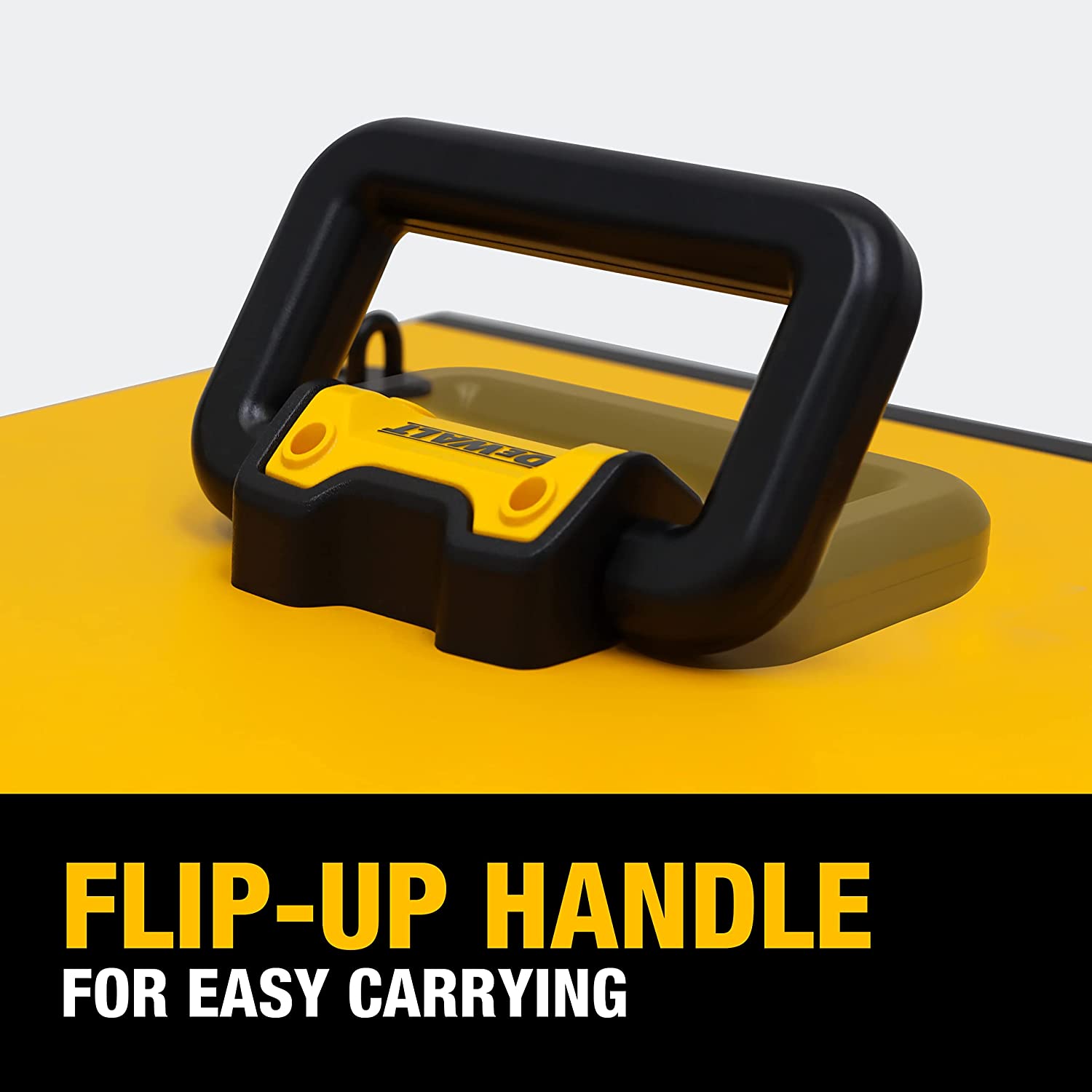

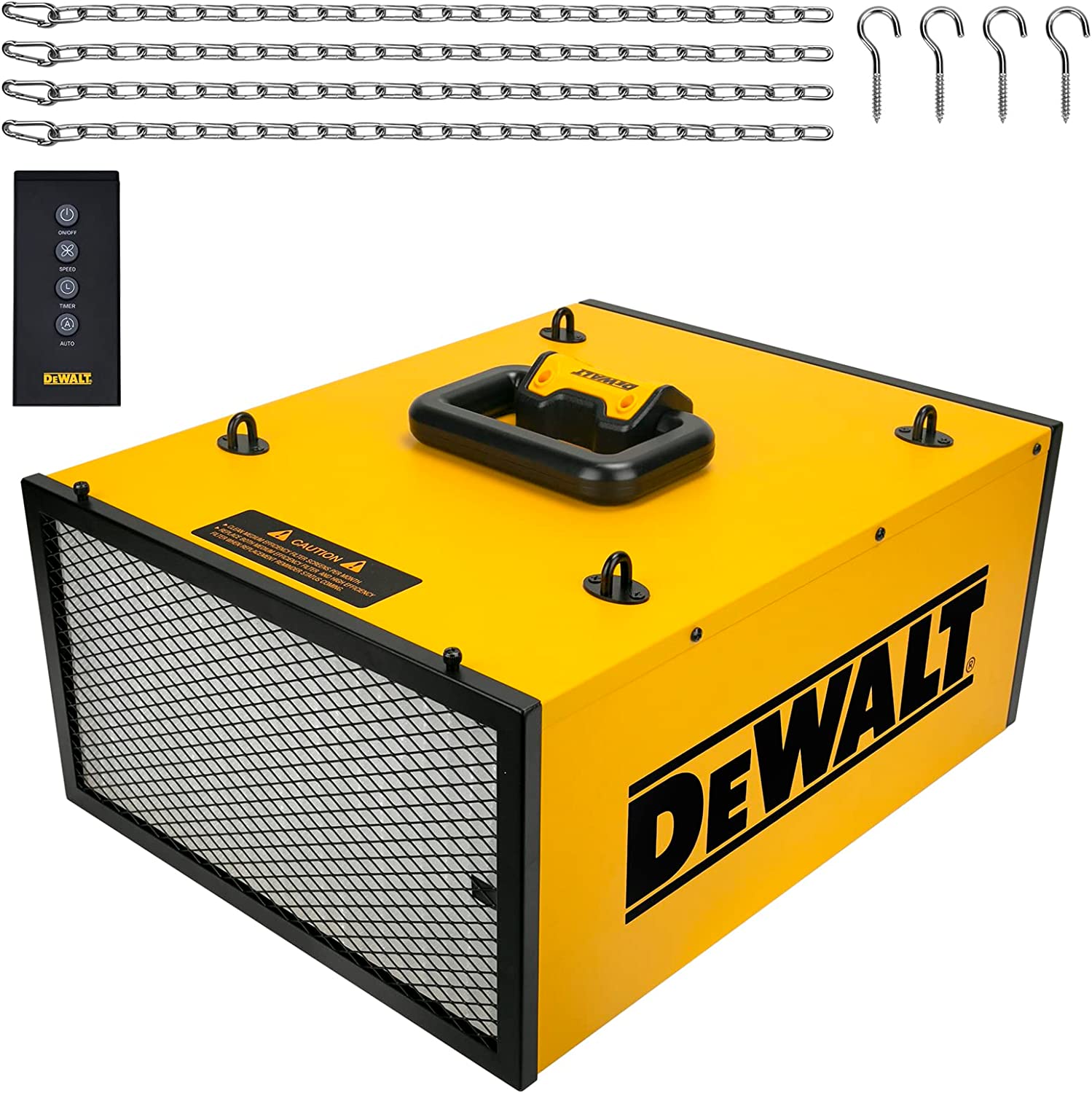

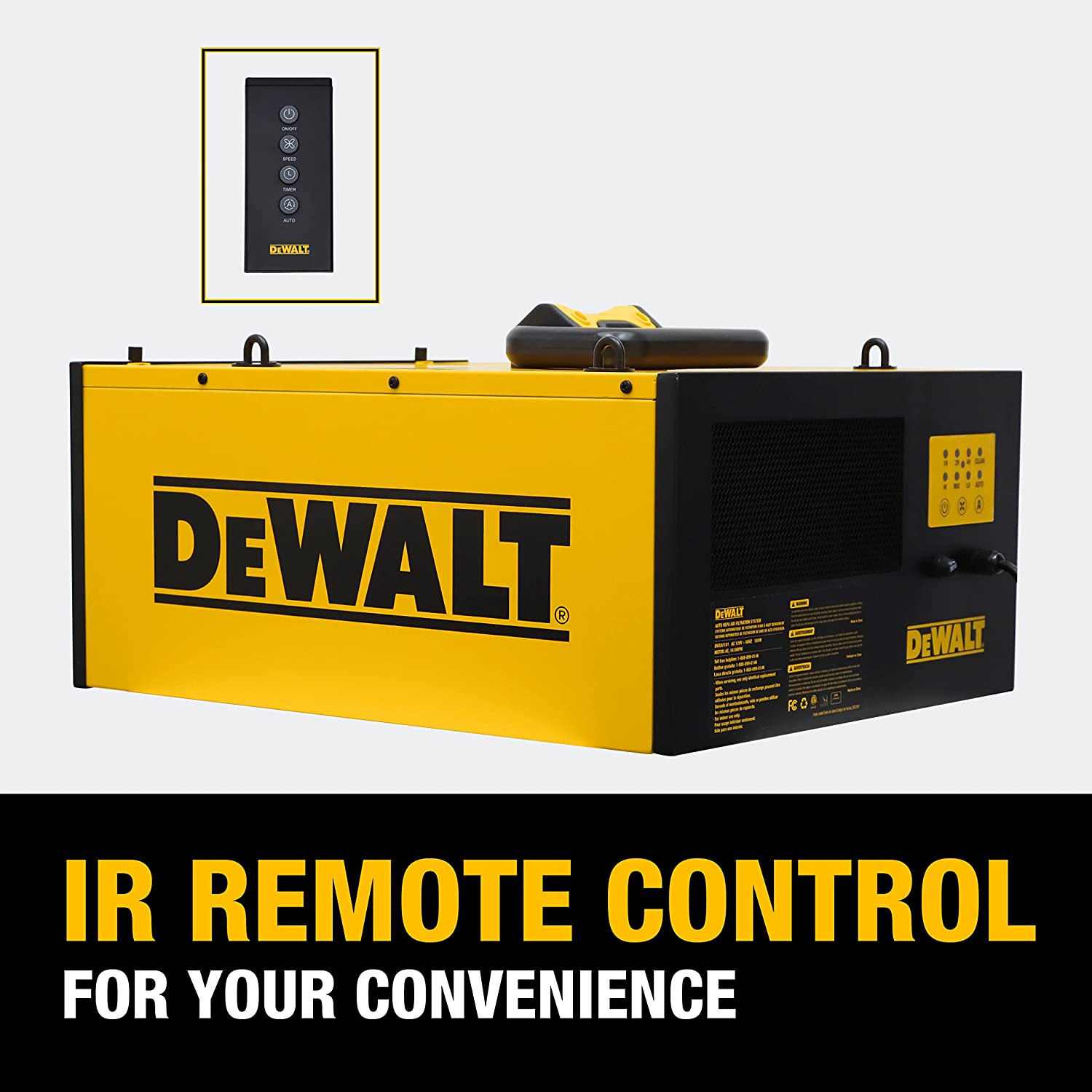

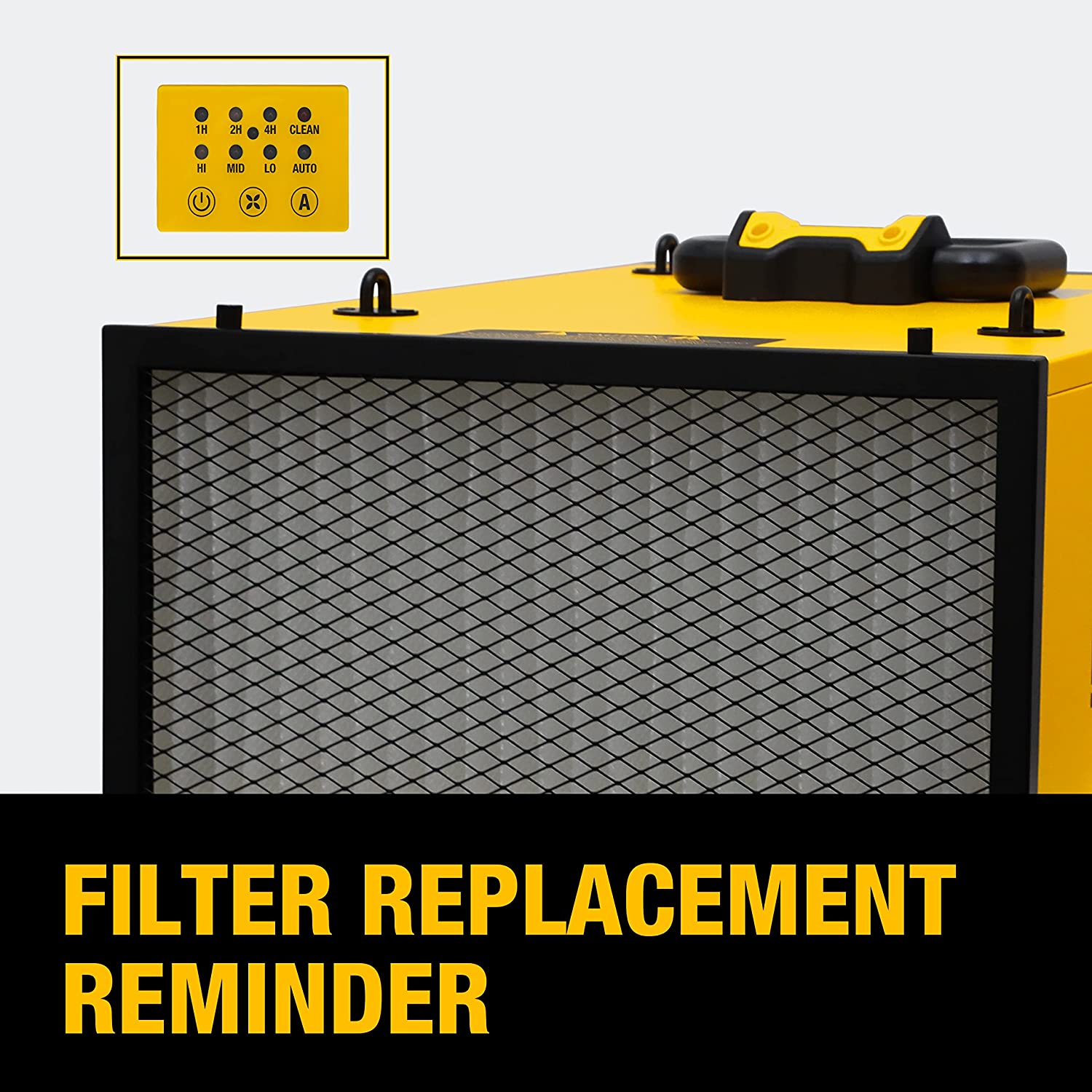

The DeWALT DWXAF101 air filtration system is also designed to be user-friendly, with a built-in IF remote controller and filter replace reminder function. The unit can easily be hung from the ceiling using hooks and chains, and its flip-up handle allows for easy carrying.

The product comes with a 3-year limited warranty, 1-year free service, and a 90-day money-back guarantee, providing customers with the peace of mind that they are investing in a quality product.

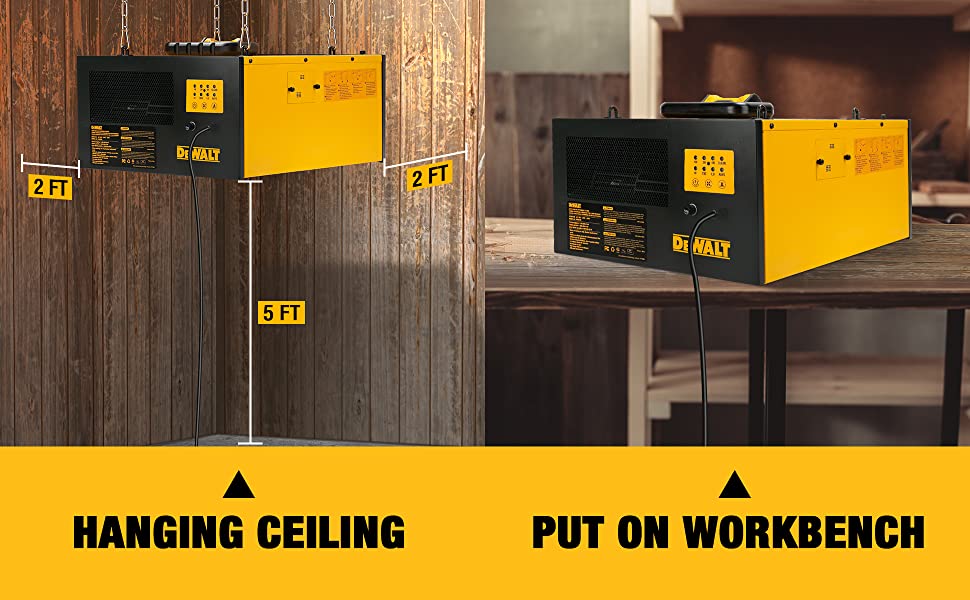

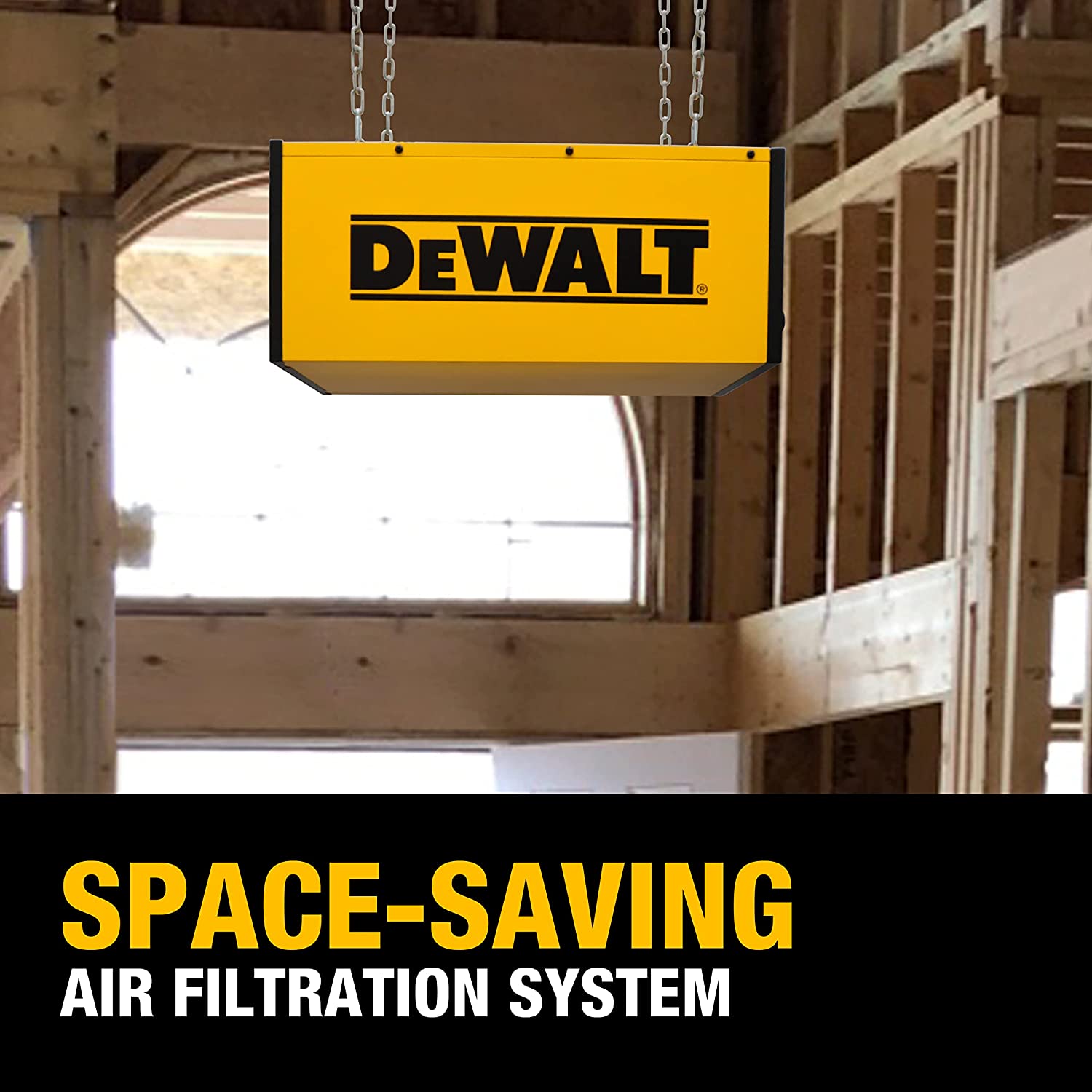

However, it is important to note that the DeWALT DWXAF101 should be installed with precautions in mind. For example, if the machine is installed on the ceiling, it is recommended to ensure that the bottom of the machine is at least 5 feet from the floor and anchored to a structure capable of holding at least 100 pounds. The machine should not be anchored to non-structural components such as unsupported drywall or drop ceilings, and it should be positioned 2 feet away from any corner, heating, cooling, or air circulation vents.

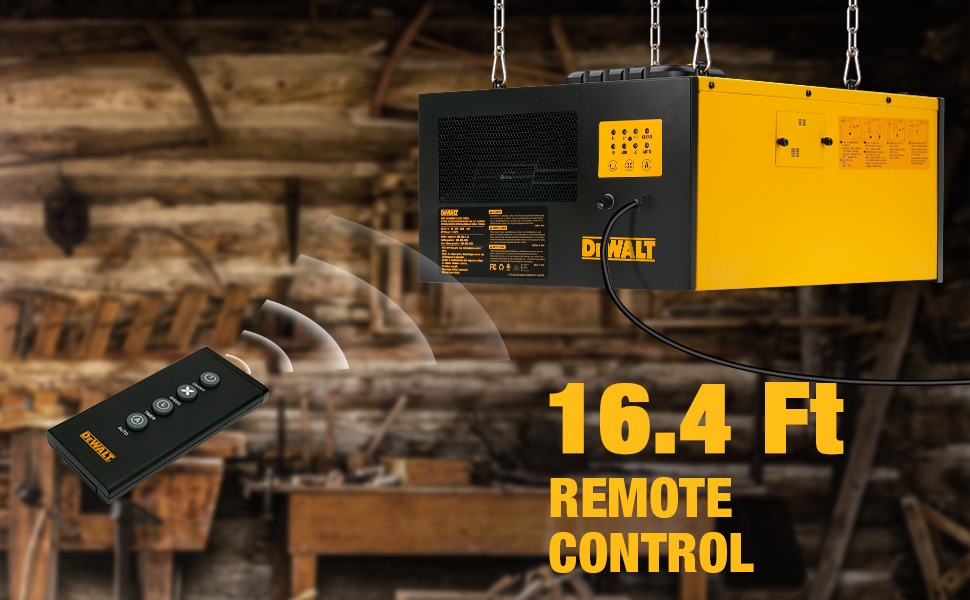

In terms of specifications, the DeWALT DWXAF101 has a maximum noise level of < 64dB, an operating ambient temperature of 32℉-140℉, an air flow of 200 / 350 / 400 m³/h, and a power rating of 105W. The product dimensions are 20 x 15.9 x 10.2 inches, and it weighs 20.9lbs. The remote control can operate at a maximum distance of 16.4 feet. Overall, the DeWALT DWXAF101 air filtration system is a promising addition to DeWALT's line of power tools, providing a comprehensive solution for air filtration in woodworking environments. Its user-friendly design, efficient filtration system, and easy-to-use features make it an excellent investment for any workshop or garage.


DeWALT DWXAF101 Air Filtration System, 3-Speed Hanging Ceiling Dust Collectors for Woodworking, Remote Controlled Dust Collection Systems, 2 Stage Filtration, for Shop Garage
69 Reviews
DeWALT DWXAF101 Air Filtration System, 3-Speed Hanging Ceiling Dust Collectors for Woodworking, Remote Controlled Dust Collection Systems, 2 Stage Filtration, for Shop Garage
  • 2-Stage Filtration: Includes a static cotton medium efficiency filter (cleanable) and an H11 HEPA high-efficiency filter, which can filter more than 95% of 0.3μm particles.
  • 8H Timer Settings: Built-in timer settings for 1H, 2H, 4H, and 8H will shut off automatically at the end of the designated time, cleaning the air while you're away.
  • Four Working Modes: Built-in HI mode, MID mode, LO mode, and AUTO mode (Automatic sensor sensing air quality, automatic identification of switching gears).
  • Easy to Use: Built-in IF remote controller and filter replace reminder function. Easily hang it from the ceiling with hooks and chains. Easy to carry with flip-up handle.
  • Tool Warranty: 3-year limited warranty, 1-year free service, and 90 days money-back guarantee.

Promotion availability and prices can change at any time on Amazon. Information included on this page is accurate as of 2024-03-26 at 12:18 CST.


Leave a Reply

One thought on “Tool News: Say Goodbye to Dust with DeWALT’s DWXAF101 Air Filtration System

  1. John Yingling

    You description of the DWXAF101 states “an air flow of 200 / 350 / 400 m³/h”, is this correct? Would that be just over 180 CFM (cubic feet per minute) which would be good for a shop 8x13x13. Really?????
